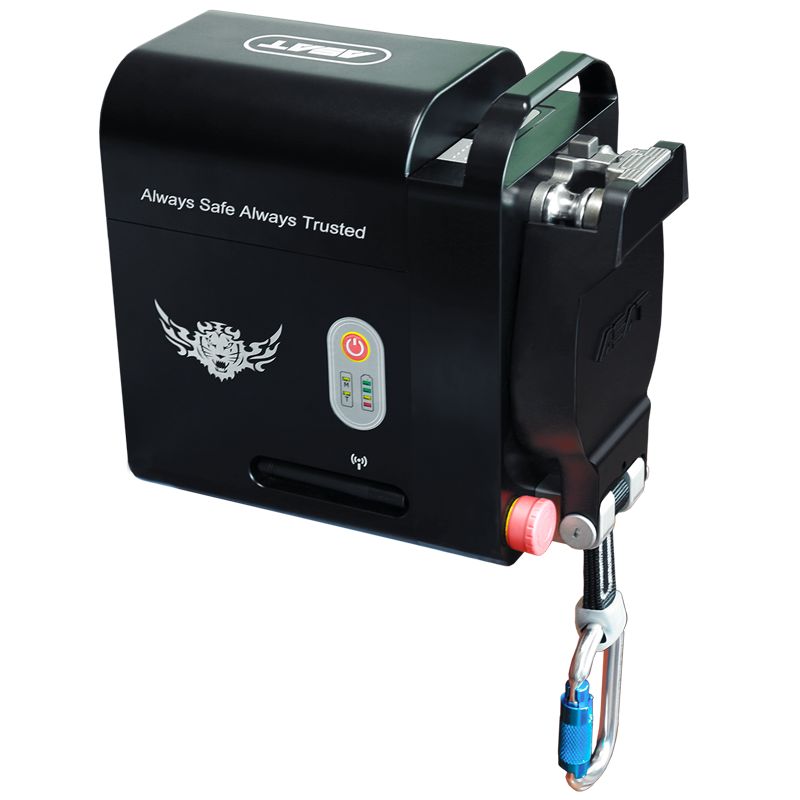

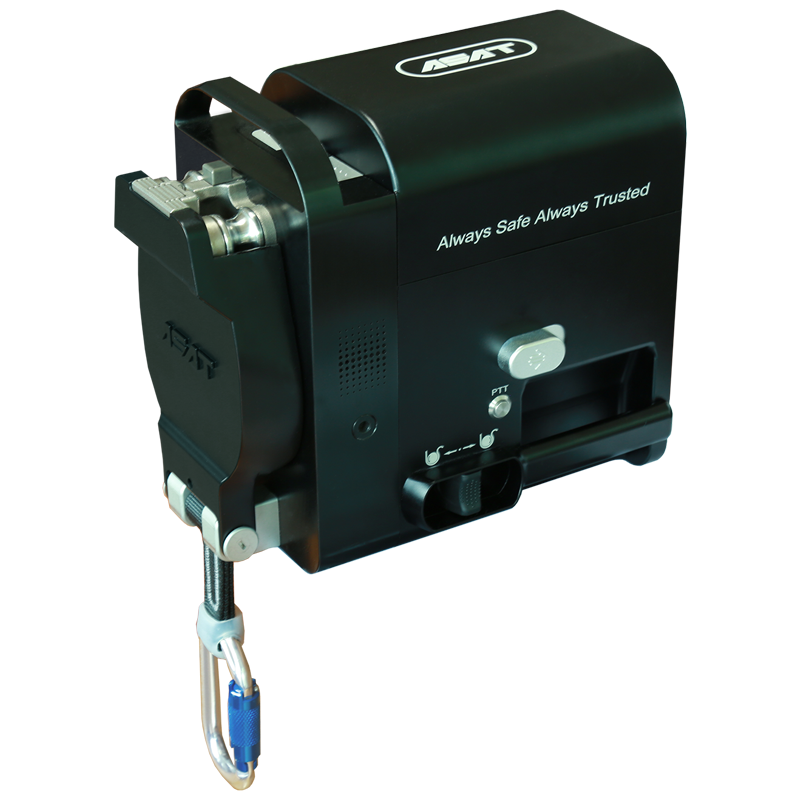

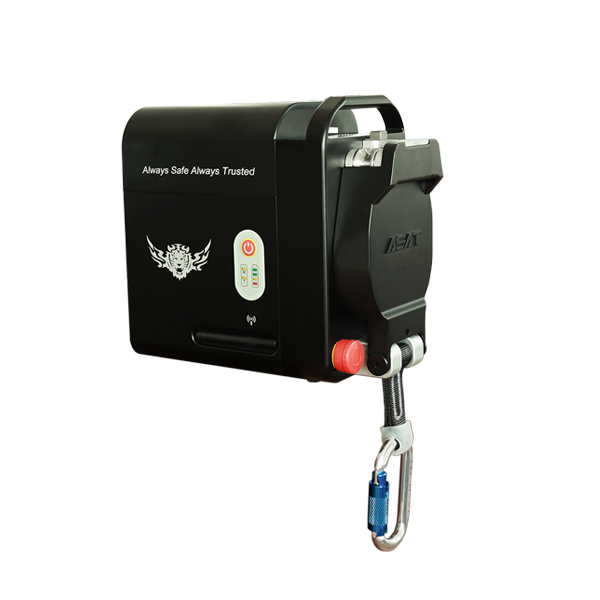

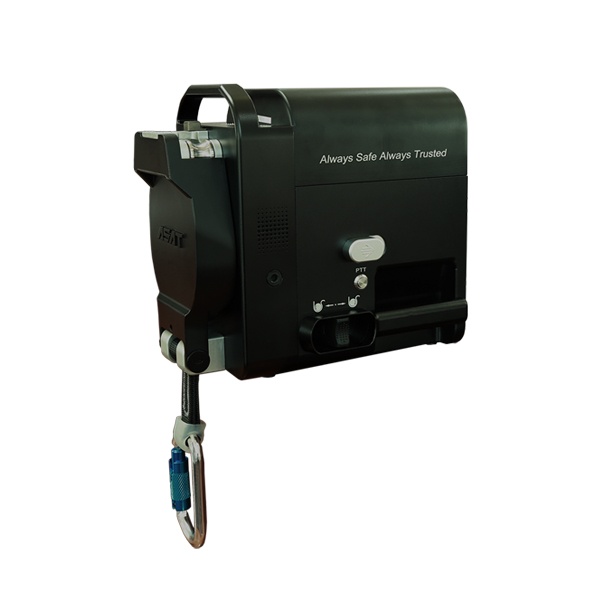

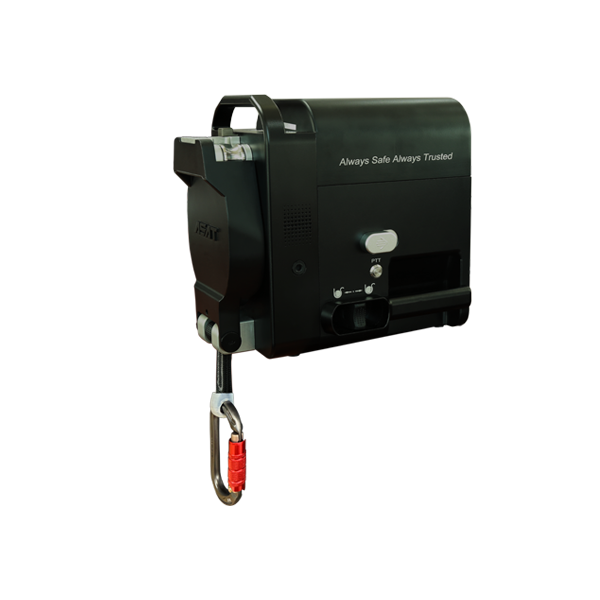

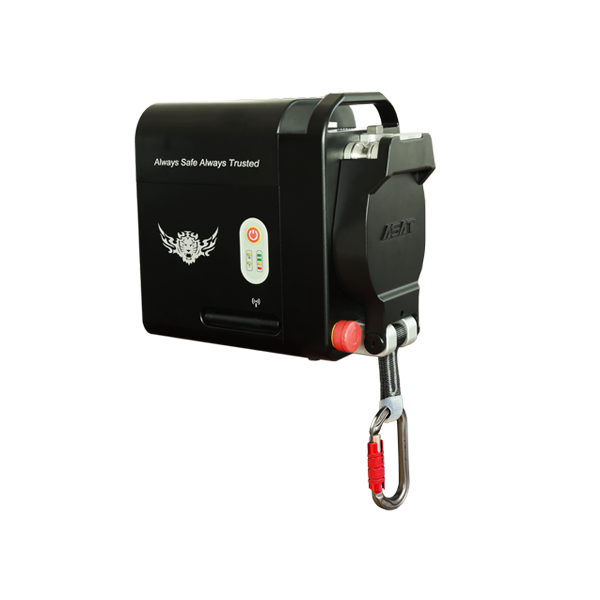

ACE Mini Power Ascender
ACE-22
Mini power ascender, gross weight of 10.5kg, which is compacted and can be
stored in a backpack.
Maximum load of 180kg, stepless speed regulation,
150m remote control.
Swappable battery.Dimensions: 27cm*16cm*24cm.
| Rope |
Semi-static rope of 11mm diameter conforming to EN1891 A |
|
Rated working load |
140kg |
|
Working load limit |
180kg |
|
Operation mode |
Ascending and descending vertically/traversing horizontally/traversing inclinedly |
|
Ascending speed |
0~30m/min (at rated load) stepless speed regulation
|
|
Descending speed |
0~40m/min (at rated load) stepless speed regulation
|
|
Swappable battery |
√ |
|
Weight
|
10.5kg (Incl. battery)
|
|
Size
|
26cm×16cm×24cm
|
|
Running distance (with standard battery) |
400m (120kg) travel compacity of ascending and descending alternatively,
160m (120kg) travel compacity of ascending continuously
|
|
Remote control range |
0~150m（open space） |
|
Charging time |
＜ 60min |
|
Ingress Protection |
IP54 |
|
Operating temperature range
|
-20℃~+60℃
√ |
